Samples of Operation Theatre Lights - what we have for you
These are only samples. If you do not find anything here, please do contact us. We have a huge repository of medical items required for a most modern Operation Theatre or Intensive Care Unit. These also do pass the stringent quality control, that is required to be maintained for an hospital or nursing home to function most cost effectively.
- OT Lights
Descriptions of OT Lights

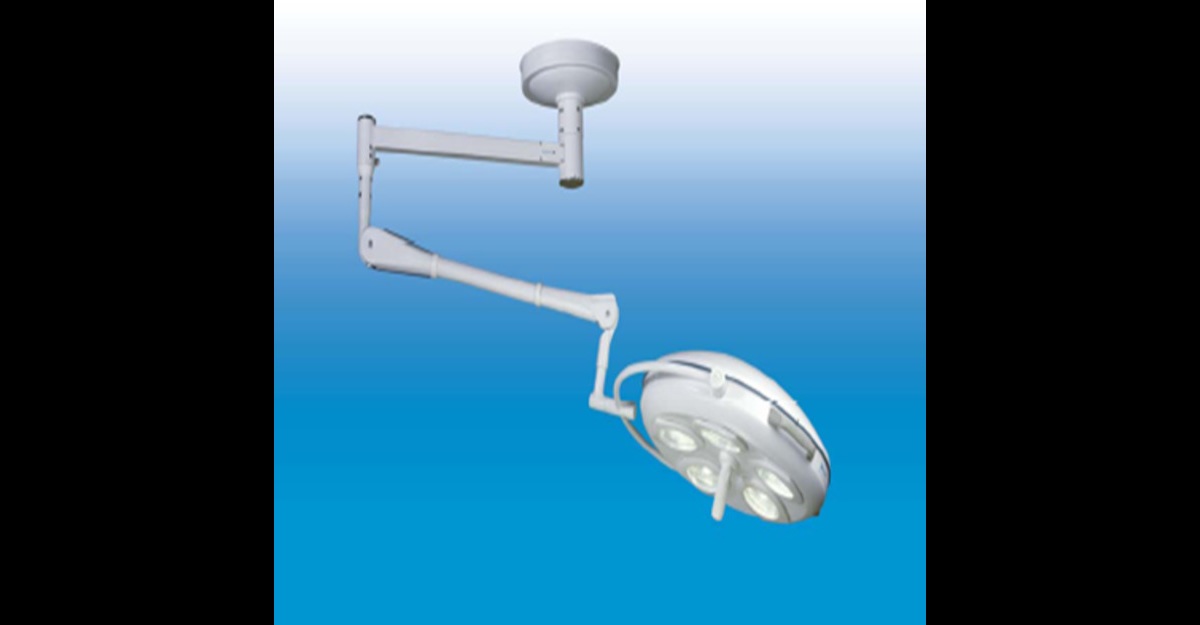

Single dome Ceiling Mounted 5 Lamp
DOME 1 no.
DIAMETER OF DOME 630 mm
SPRING ARM STROKE 850 mm ( approx ) + 50mm
HALOGEN LAMPS 5 nos.12V 50 W each
LIGHT OUTPUT 90,000 lux at a distance of 1 m
FIELD SIZE 200 mm diameter ( max )
ACTION RADIUS 2035 mm
LOW VOLTAGE UNIT WITH CVT 300VA 1no.
INPUT SUPPLY VOLTAGE 230V AC + 10%
50 Hz + 2%
OUTPUT VOLTAGE 10.5 to 12.5 V RMS on load.
( IN FOUR STEPS) at 50 Hz
COLOUR TEMPERATURE 4200 °K
Please note that the recommended ceiling height of the above ceiling suspended light is 8.5 to 10 ft.

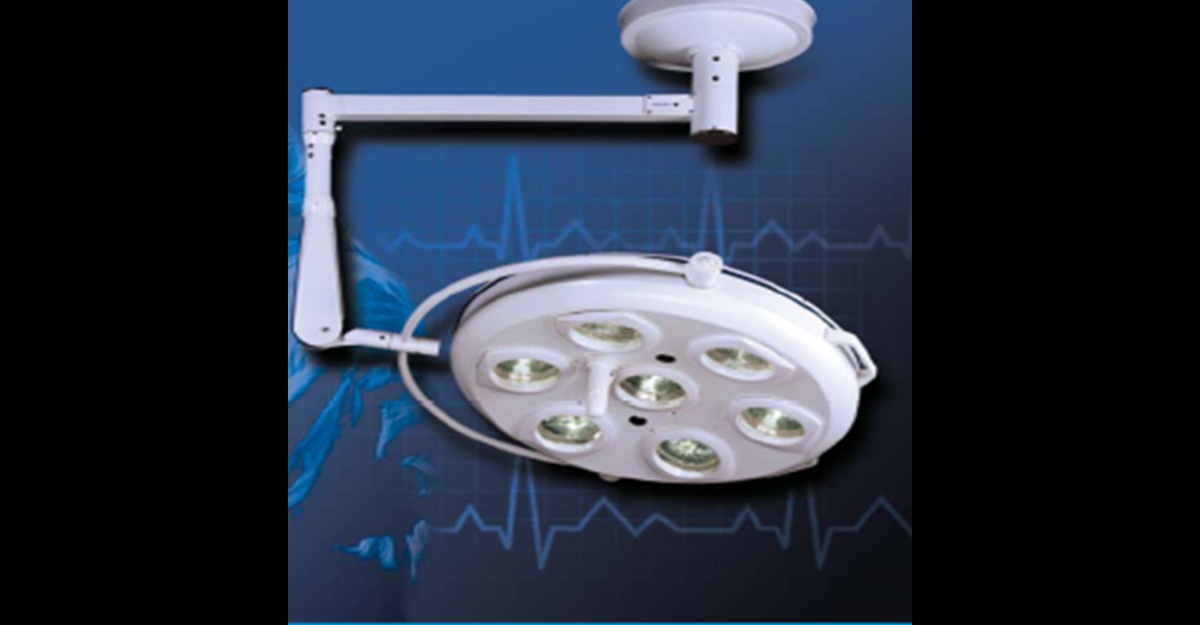

Single dome Ceiling Mounted 7 Lamp
DOME 1 no.
DIAMETER OF DOME 762mm ( Nominal )
SPRING ARM STROKE 500 mm ( approx ) + 50mm
HALOGEN LAMPS 7 nos.12V 50 W each.
LIGHT OUTPUT 1,35,000 lux at a distance of 1 m from the dome
FIELD SIZE 200 mm diameter
ACTION RADIUS 1400 mm ( nominal)
LOW VOLTAGE UNIT WITH CVT 500VA 1no.
INPUT SUPPLY VOLTAGE 230V AC + 10%, 50 Hz + 2%
OUTPUT VOLTAGE 10.5 to 12.5 V RMS on load.
( IN FOUR STEPS) at 50 Hz
COLOUR TEMPERATURE 4200 + 300 °K
Please note that the recommended ceiling height of the above ceiling suspended light is 8.5 to 10 ft.

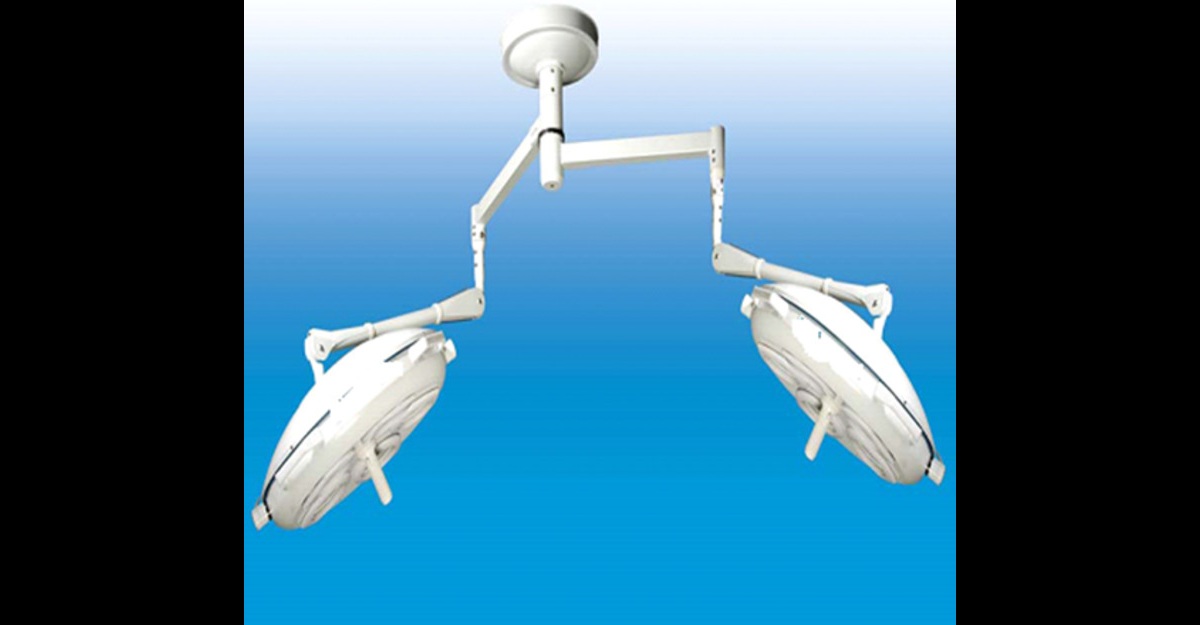

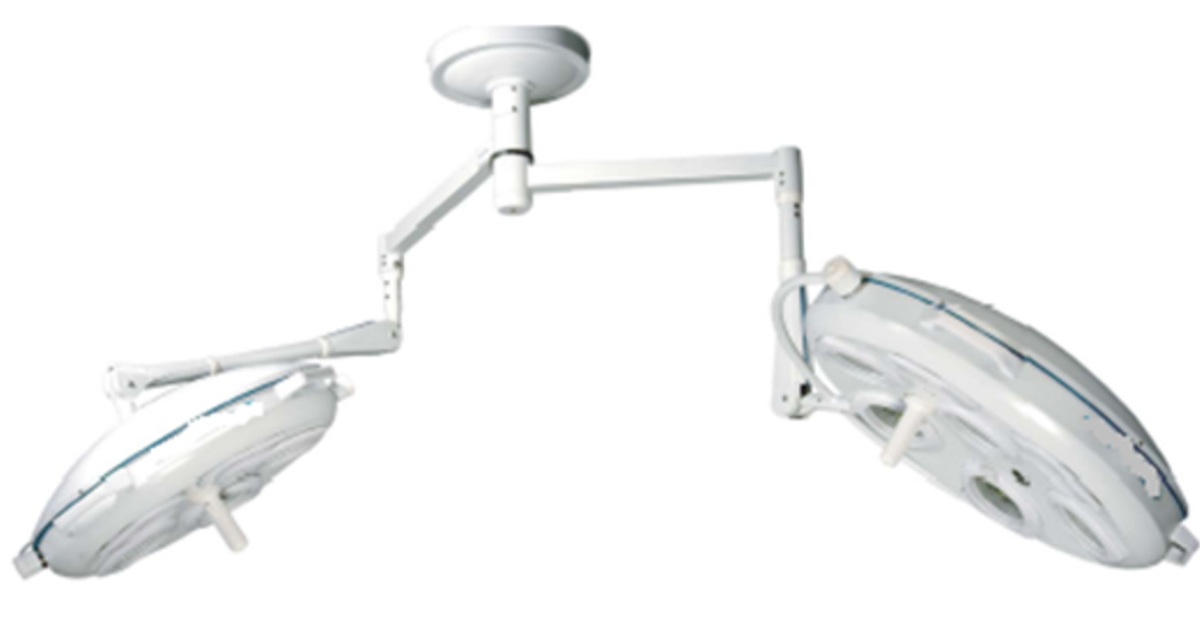

Double Dome 5 Lamp Ceiling mounted OT Light
DOME 2 nos.
DIAMETER OF DOME 630 mm
SPRING ARM STROKE 850 mm ( approx ) + 50mm
HALOGEN LAMPS 5 nos.12V 50 W each
LIGHT OUTPUT 90,000 lux at a distance of 1 m
FIELD SIZE 200 mm diameter ( max )
ACTION RADIUS 2035 mm
LOW VOLTAGE UNIT WITH CVT 300VA 2nos.
INPUT SUPPLY VOLTAGE 230V AC + 10%, 50 Hz + 2%
OUTPUT VOLTAGE 10.5 to 12.5 V RMS on load.
( IN FOUR STEPS) at 50 Hz
COLOUR TEMPERATURE 4200 °K
Please note that the recommended ceiling height of the above ceiling suspended light is 9.3ft to 11 ft
Double Dome Ceiling mounted 5 lamp
DOME 1 no.
DIAMETER OF DOME 630 mm
SPRING ARM STROKE 850 mm ( approx ) + 50mm
HALOGEN LAMPS 5 nos.12V 50 W each
LIGHT OUTPUT 90,000 lux at a distance of 1 m
FIELD SIZE 200 mm diameter ( max )
ACTION RADIUS 2035 mm
LOW VOLTAGE UNIT WITH CVT 300VA 1no.
INPUT SUPPLY VOLTAGE 230V AC + 10%, 50 Hz + 2%
OUTPUT VOLTAGE 10.5 to 12.5 V RMS on load.
( IN FOUR STEPS) at 50 Hz
COLOUR TEMPERATURE 4200 °K
Please note that the recommended ceiling height of the above ceiling suspended light is 9.5ft to 11 ft
Double Dome Ceiling mounted 7 lamp
DOME 1 no.
DIAMETER OF DOME 762mm ( Nominal )
SPRING ARM STROKE 500 mm ( approx ) + 50mm
HALOGEN LAMPS 7 nos.12V 50 W each.
LIGHT OUTPUT 1,35,000 lux at a distance of 1 m
FIELD SIZE 200 mm diameter ( max )
ACTION RADIUS 1400 mm ( nominal)
LOW VOLTAGE UNIT WITH CVT 500VA 1no.
INPUT SUPPLY VOLTAGE 230V AC + 10%, 50 Hz + 2%
OUTPUT VOLTAGE 10.5 to 12.5 V RMS on load.
( IN FOUR STEPS) at 50 Hz
COLOUR TEMPERATURE 4200 + 300 °K
Please note that the recommended ceiling height of the above ceiling suspended light is 9.5ft to 11 ft
Single Dome 4 Lamp Mobile Light
DOME 1 no.
DIAMETER OF DOME 515mm
SPRING ARM STROKE 1000 mm ( approx ) + 50mm
HALOGEN LAMPS 4 nos.12V 50 W each
LIGHT OUTPUT 50,000 lux at a distance of 1 m
FIELD SIZE 250 mm diameter ( max )
ACTION REACH 1300 mm
LOW VOLTAGE UNIT WITH CVT 250VA1no.( No intensity control)
INPUT SUPPLY VOLTAGE 230V AC + 10%, 50 Hz + 2%
OUTPUT VOLTAGE 11.2 V RMS
( IN FOUR STEPS) on load at 50 Hz
COLOUR TEMPERATURE 4200 °K

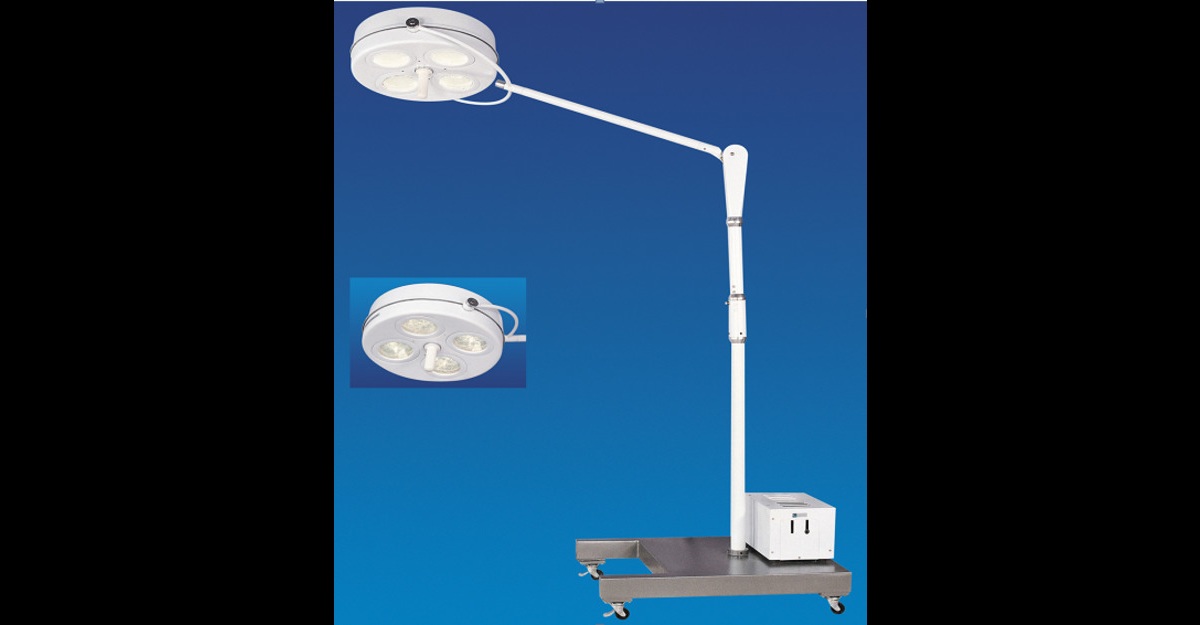

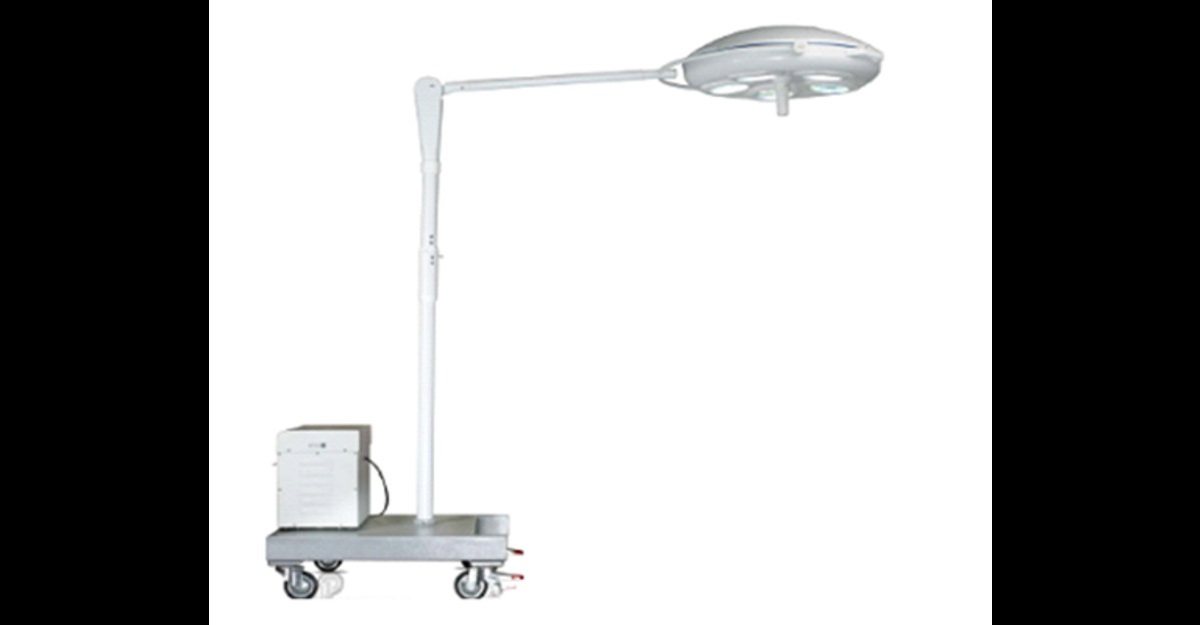

Single Dome 5 Lamp Mobile Light
DOME 1 no.
DIAMETER OF DOME 630 mm
SPRING ARM STROKE 850 mm ( approx ) + 50mm
HALOGEN LAMPS 5 nos.12V 50 W each
LIGHT OUTPUT 70,000 lux at a distance of 1 m
FIELD SIZE 200 mm diameter ( max )
ACTION RADIUS 2035 mm
LOW VOLTAGE UNIT WITH CVT 300VA 1no.
INPUT SUPPLY VOLTAGE 230V AC + 10%, 50 Hz + 2%
OUTPUT VOLTAGE 10.5 to 11.5 V RMS on load.
( IN FOUR STEPS) at 50 Hz
COLOUR TEMPERATURE 4200 °K
Single Dome 1 Lamp Mobile Inspection Light
Spot Examination lamp
Fixed intensity control
Single dome/bulb 12V 100W halogen
> 30,000 lux
Movable on Castors
Used in Gayne Ward

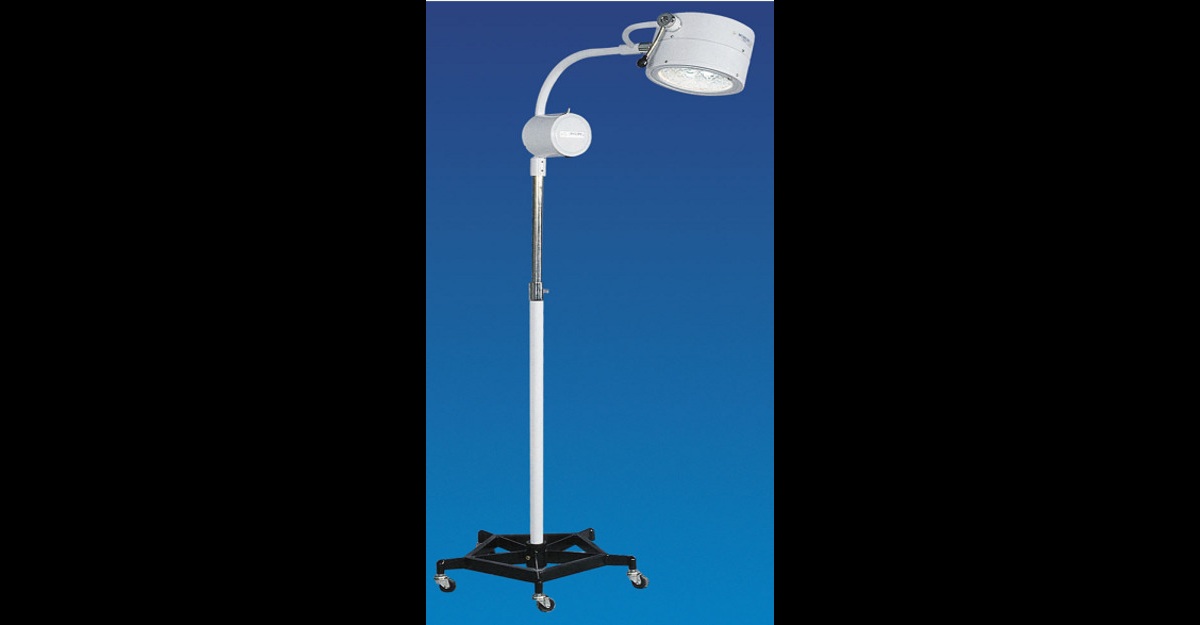

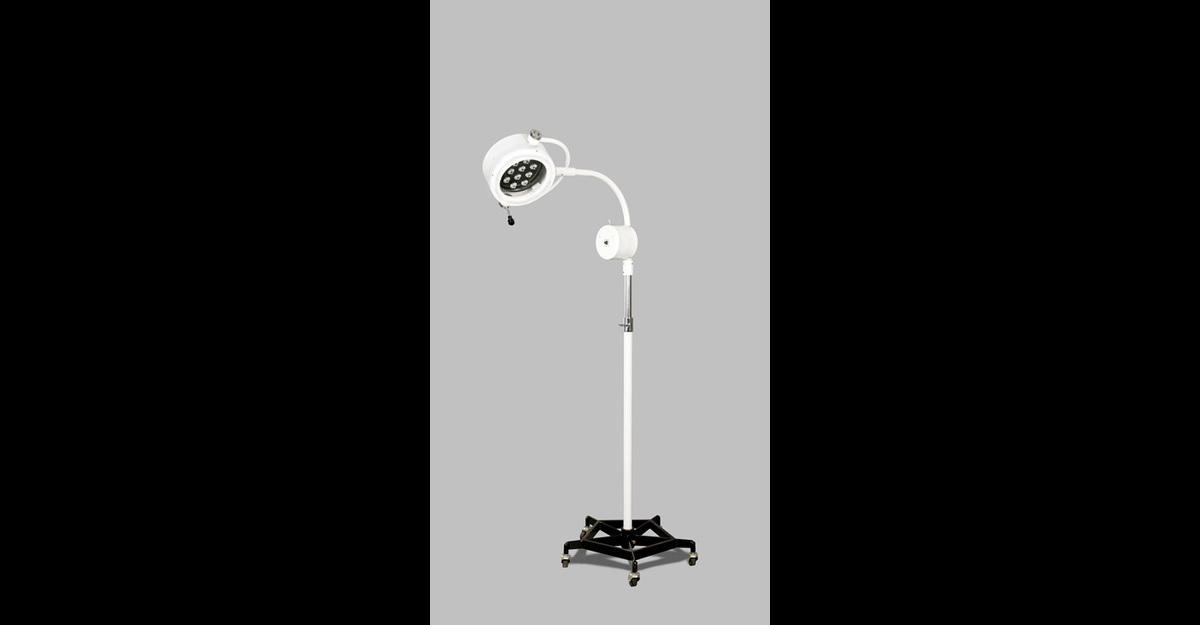

LED Mobile Inspection Light
Lux : 50,000 ( at 700mm)
CRI :90
Input Supply 220 V AC+/- 10%
Field Dia : 250mm
Fixed Focus at 700 mm distance
Vertical stroke ( up down movement by spring collet assy: 350mm
No of LED 10
No of castor wheel : 5
Power Supply : SMPS ( Built in)

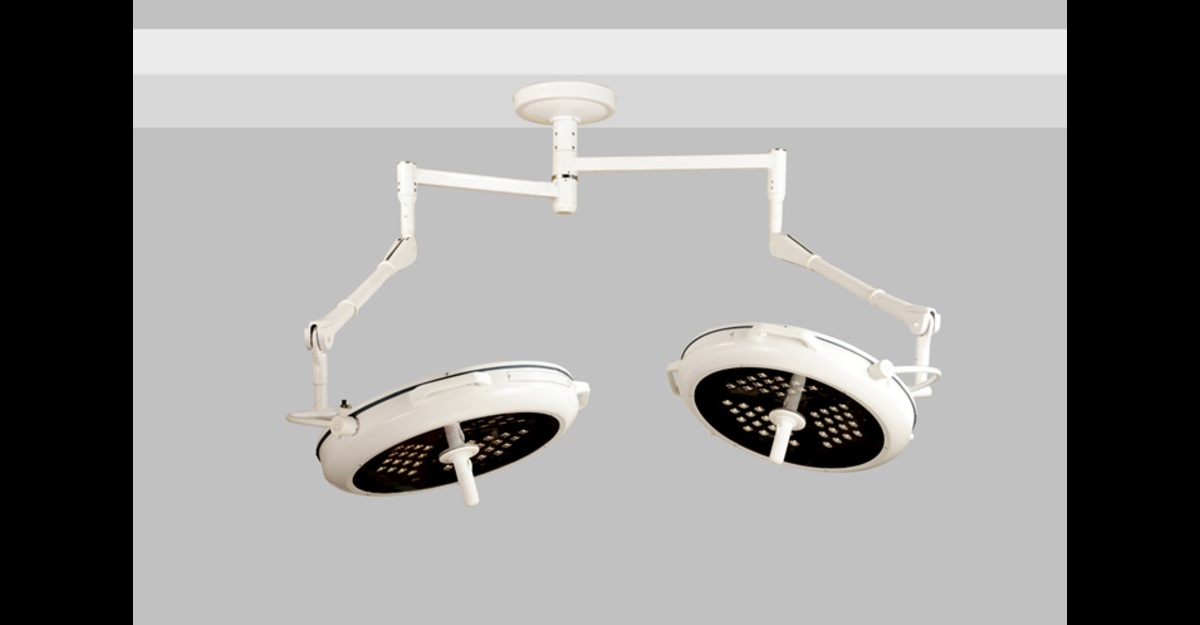

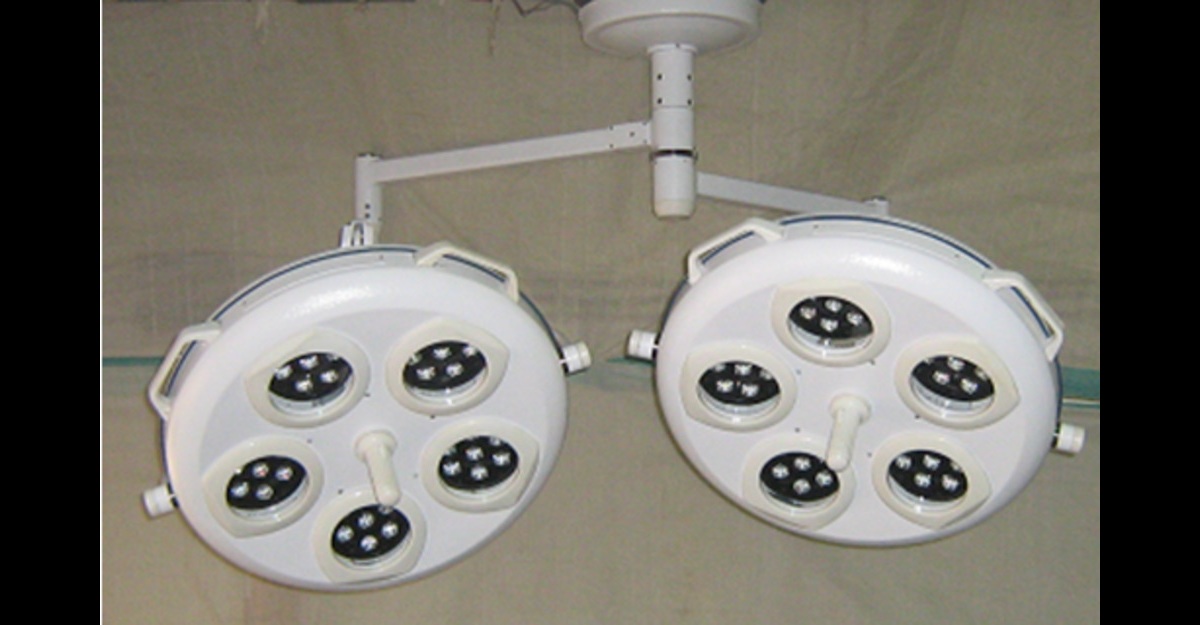

5 LED Double Dome Lamp
Dome diameter:630 mm (Nominal)
Spring arm stroke : 750mm ( Nominal)
Field size : Variable by Handle :145mm to 280mm
Lux Output : 1,10,000
Color temperature : 4100 °K
CRI :90

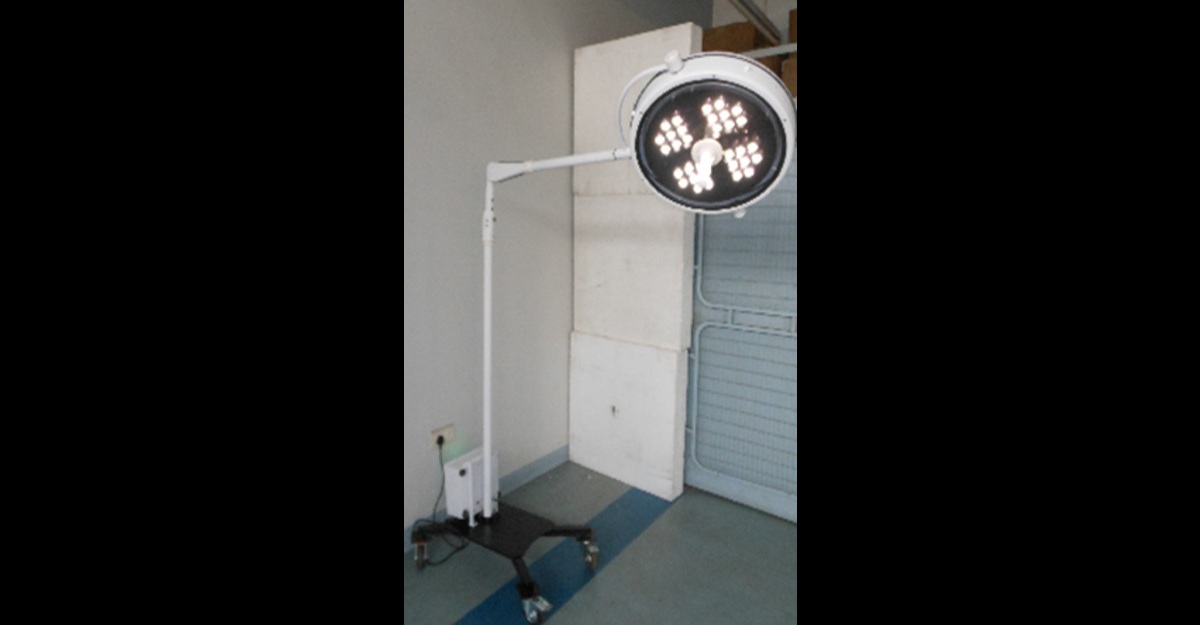

4 LED Mobile OT Light
Dome diameter :515 mm( nominal )
No of LED : 32 nos in 4 clusters
Castor Wheel : 4 nos ( 2 nos with brake)
Light output at 1 mtr. : 100000
Field size : 300 mm ( fixed focus)
Depth of illumination : 1000mm
Color temperature : 4200 °K
CRI: 90
Supply includes Power supply unit : SMPS ( with intensity control)
Input : 220 V AC+/-10% single ph. 50Hz +/-2%
Spring arm stroke : 700 mm +/- 30 mm
Action radius :1230 mm ( Nominal)
3 LED OT Light
Dome diameter:630 mm (Nominal)
Spring arm stroke : 850mm ( Nominal)
Field size : Fixed :340mm ( Fixed focus)
Lux Output in each dome: 1,40,000
Color temperature : 4100°K
CRI :90
SMPS ( wall mounting type) with Intensity control
